A1S55B-S1 | MITSUBISHI Extended bottom plate A1S55B-S1

MITSUBISHI A1S55B-S1 Manual And Instructions
A1S55B-S1 datasheetPDF datasheet

MITSUBISHI A1S55B-S1 Product information and technical parameters:

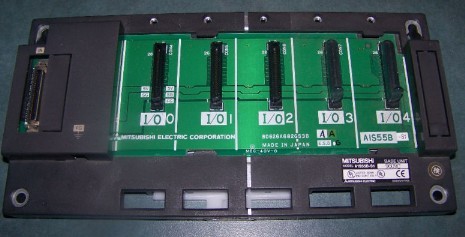

Name: Extended bottom plate
Model: A1S55B-S1
I/O slots: 5 slots.
Can you install the power module.
Outline dimension: 260*130.
There are two types of extended floor,
A power module can be inserted, and the other one is not.
The choice of any type of substrate depends on the total DC5V current consumption and the power supply on the CPU main substrate.
If the total demand is less than the power output, no additional power supply,
Then you can choose a more economical expansion board.
Both ends of the main base plate of the CPU have an expansion interface, and can be used for extending the cable connection.

A1SI61 is designed to control the application of mechanical devices that require high speed response time.
A1SI61 temporarily stop running in order to generate an interrupt signal when the program is running,
And according to the interrupt vector to execute the corresponding interrupt handler.
The interrupt start condition can be selected according to the type of the connected device,
That is, the rising edge of the interrupt signal can be selected as a starting signal, and the falling edge of the interrupt signal can be selected as an interrupt MITSUBISHI A1S55B-S1 A1S55B-S1
