FX2NC-16MT-DSS | MITSUBISHI PLC FX2NC-16MT-DSS

MITSUBISHI FX2NC-16MT-DSS Manual And Instructions
FX2NC-16MT-DSS datasheetPDF datasheet
FX2NC-16MT-DSS HARDWARE MANUAL
FX2NC-16MT-DSS PROGRAMMING MANUAL II
FX2NC-16MT-DSS HARDWARE MANUAL

MITSUBISHI FX2NC-16MT-DSS Product information and technical parameters:
Brand: MITSUBISHI
Name: PLC
Model: FX2NC-16MT-DSS
Max input / output points: 16 points.
Power supply voltage: 24VDC.
Input points: 8 points.
Output points: 8 points.
Output type: Transistor (source).
Power consumption: 6W.
Weight (kg):0.2.
Size (WxHxD) mm:35x90x87.

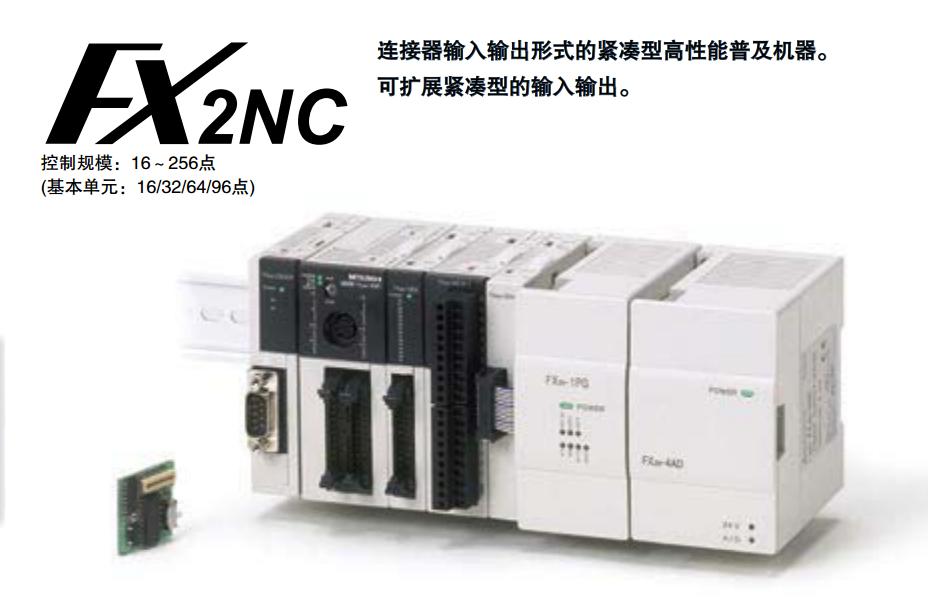

Taking into account space saving and processing speed.
Connector input and output type compact high performance universal machine.
Compact, scalable input / output.
Can connect analog quantity, communication, positioning, etc..
Rich special extension equipment for FX2N.
By connecting the compact FX2rvc series with the input and output expansion module.
The input and output can be extended to 256 points.
Built in 8000 step RAM memory.
By installing the memory card box, the maximum can be extended to the 16000 step.
Overseas oriented products meet all kinds of international standards.
Use terminal module to replace connector connection or relay terminal row connection,
So as to save the wiring inside the cabinet.

Max input / output points: 32 points.
Supply voltage: 100 - 240VAC.
Input points: 16 points.
Output points: 16 points.
Output type: Triac.
Power consumption: 40VA.
Weight (kg):0.65.
Size (WxHxD) mm:150x90x87.
Since the FX2n series have the following features: the maximum range of inclusive of the standard features, program execution faster, the full complement of communication function, suitable for different countries in the world, and the power to meet a large number of special function modules of individual needs,
It can provide maximum flexibility and control capability for your factory automation applications MITSUBISHI FX2NC-16MT-DSS FX2NC-16MT-DSS
Control 16~256 point.
Built in 8K capacity of the RAM memory, the maximum can be extended to 16K MITSUBISHI FX2NC-16MT-DSS.
CPU arithmetic processing speed of 0.08 S/ basic instructions.
On the right side of the FX2N series can be connected to the input and output expansion modules and special function modules.
The basic unit is built in the 2 axis independent maximum 20kHz positioning function (transistor output type).
Quick disconnect the terminal block, which adopts excellent maintainability to quickly disconnect the terminal blocks, even if the cable is then replaced by the cable MITSUBISHI FX2NC-16MT-DSS.
Developed a range of special function modules to meet the needs of different - analog I/O, high speed counter.
Positioning control to achieve the 16 axis, the pulse train output or for the J and K type thermocouple or Pt sensor developed the temperature module.
A total of 8 special function modules can be configured for each FX2n main unit.
Note recording function, Component annotation can be recorded in the program register.
Online program editor, online change the program will not lose the working hours or stop production operation.
RUN/STOP switch, running on panel / stop switch easy to operate.
Remote maintenance, remote programming software can monitor, upload or uninstall programs and data via modem communications
Password protecttion, using a eight digit password to protect your program FX2NC-16MT-DSS.
Clock function and hour meter function, all of the PLC FX2N has a real-time clock standard.
Continuous scanning function, to define the operation cycle for the application off the continuous scan time FX2NC-16MT-DSS.
Input filter adjustment function, you can use the input filter to smooth the input signal (in the basic unit x000 to x017).
