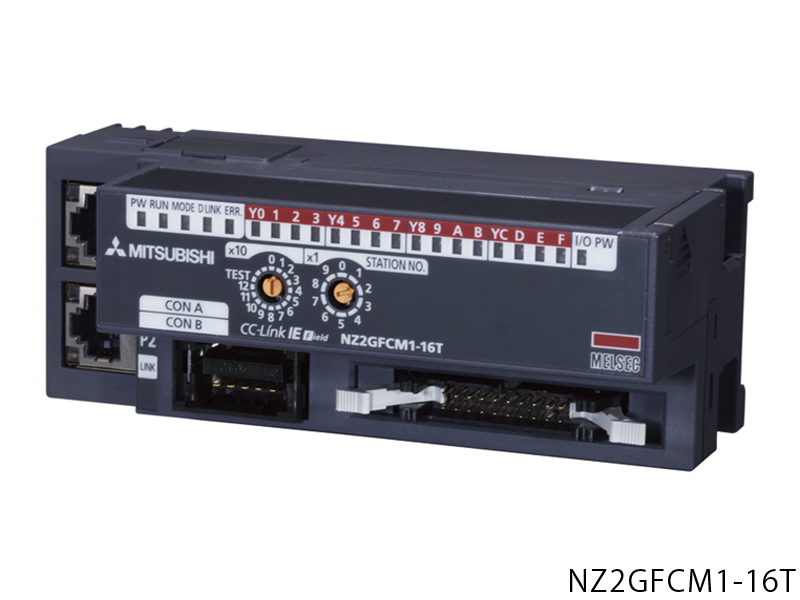

NZ2GFCM1-16T | MITSUBISHI Modular remote transistor output module NZ2GFCM1-16T

MITSUBISHI NZ2GFCM1-16T Manual And Instructions
NZ2GFCM1-16T datasheetPDF datasheet

MITSUBISHI NZ2GFCM1-16T Product information and technical parameters:
Brand: MITSUBISHI
Name: Modular remote transistor output module
Model: NZ2GFCM1-16T
Type: MIL connector.
Output form: transistor output, leakage type.
Output points: 16 points.
Rated input voltage / current: DC12/24V (0.5A).
External connection: 1 wire.
By using the output ON number of times, it is convenient to confirm the total number of ON of each output point.
High speed input and output control of a single module can be realized by using first order logic function.
IE CC-Link field network remote equipment station. According to the equipment, more easily distributed input and output devices.
Can be connected to the expansion module, more convenient to expand the input and output points.
Support synchronous communication (using with simple motion control module).
According to the simple motion control module of the network (Master) control cycle of the implementation of the control cycle and its synchronization,
Implementation of multiple simultaneous action from the station.

Type: sensor connector (e-CON).
Input form: DC input, positive pole common end.
Input points: 16 points.
Rated input voltage / current: DC24V (4mA).
External connection: 3 wire.
IE CC-Link field network module type remote unit.
Select input response time from 0ms/0.2ms/1ms/1.5ms/5ms/10ms/20ms/70ms.
High speed input and output control of single module can be realized by using first order logic function MITSUBISHI NZ2GFCM1-16T NZ2GFCM1-16T
IE CC-Link field network remote equipment station. According to the equipment, more easily distributed input and output devices.
Can be connected to the expansion module, more convenient to expand the input and output points.
Support synchronous communication (using with simple motion control module) MITSUBISHI NZ2GFCM1-16T.
According to the simple motion control module of the network (Master) control cycle of the implementation of the control cycle and its synchronization,
Implementation of multiple simultaneous action from the station. Type: 18 point terminal.
Output points: 16 points.
Rated voltage: DC12/24V (0.5A).
Output form: source type.
External connection: 1 wire.
IE CC-Link field network remote equipment station MITSUBISHI NZ2GFCM1-16T. According to the equipment, more easily distributed input and output devices.
Can be connected to the expansion module, more convenient to expand the input and output points.
Support synchronous communication (using with simple motion control module).
According to the simple motion control module of the network (Master) control cycle of the implementation of the control cycle and its synchronization,
Implementation of multiple simultaneous action from the station. Ethernet device connection, 100Mbps/1Gbps.
IE CC-Link field network EEthernet adapter module NZ2GFCM1-16T.
Ethernet devices that support seamless information protocol (SLMP) can be connected to the IE CC-Link field network.
Can effectively use the visual sensors and RFID and other rich variety of Ethernet devices.
Weeb browser can be used to set the station number, set the Ethernet options and view the error history NZ2GFCM1-16T.
Support the transmission speed of 100Mbps/1Gbps.
